Displayed pictures are for reference only, equipment is as given in the offer.
Technische Daten
Typwire erosion machine
Number22706
CategoryWire erosion / EDM
ProducerMitsubishi
Model PA 20
Year2006
Travel axes500 x 350 x 300 mm [X×Y×Z]
max. workpiece size X1050 mm
max. workpiece size Y800 mm
max. workpiece size Z295 mm
max. workpiece weight1500 kg
table size X780 mm
table size Y630 mm

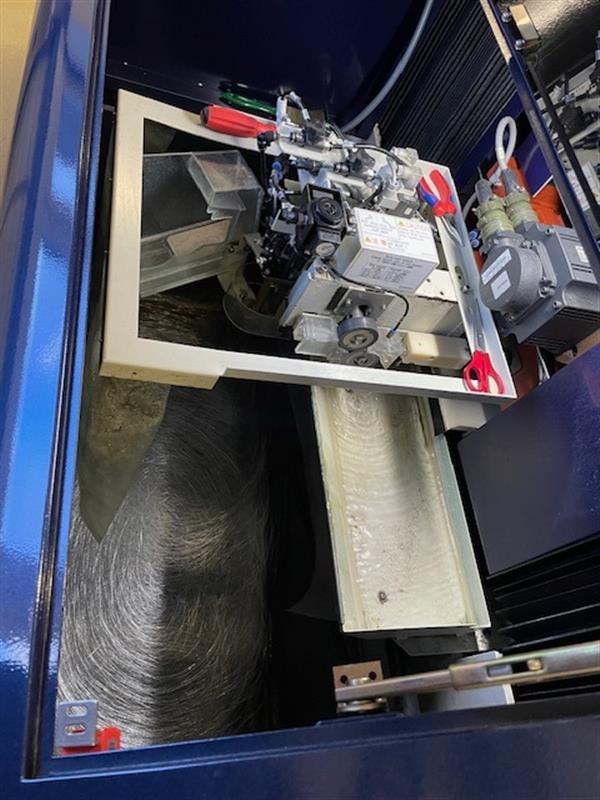

with AWF ( Automatic Wire Feeding )
U / V axis42 mm
generator50 Ampere
submerged
