Typ: lathe
Number: 22732
Category: Lathes
Producer: Doosan
Model: Puma 3100LY
Year: 2020
Travel axes: 293 x 65 x 1285 mm [ X x Y x Z ]
turning length: 1285 mm
max. turning diameter: 850 mm
max. circulation diameter: 420 mm
spindle boring: 102 mm
input Power: 26 kW
max. turning moment: 1123 NM
range of revolution from: 0 rpm
range of revolutions till: 2800 rpm
Control: Fanuc i-series
powered tools
control Fanuc

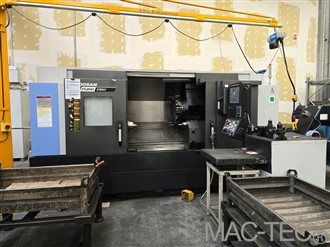

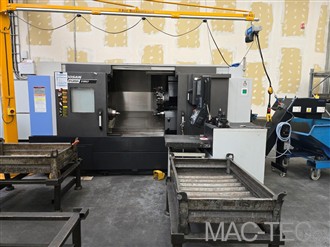

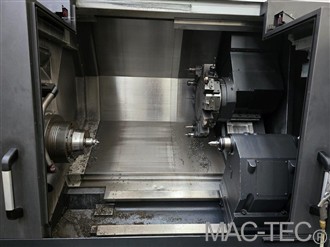

The Doosan PUMA 3100LY is a modern CNC turning center featuring a Y-axis and driven tools.
It offers a turning length of 1,285 mm, a maximum turning diameter of 420 mm and a bar capacity of 102 mm. The machine is equipped with FANUC i-Series control and a 12-station turret.
With driven tools and spindle speeds up to 2,800 rpm, it is suitable for precise machining of complex parts, single items and series production. The rigid construction ensures high stability and reliable performance in daily operation.
