Technische Daten
Typwire erosion machine
Number22777
CategoryWire erosion / EDM
ProducerFanuc
ModelROBOCUT Alpha -1iD
Year2008
Travel axes600 x 400 x 310 mm [X×Y×Z]
max. workpiece size X1050 mm
max. workpiece size Y820 mm
max. workpiece size Z300 mm
max. workpiece weight1000 kg
with AWF ( Automatic Wire Feeding )
U / V axis200 / 200 mm
submerged
cooling unit
Beschreibung

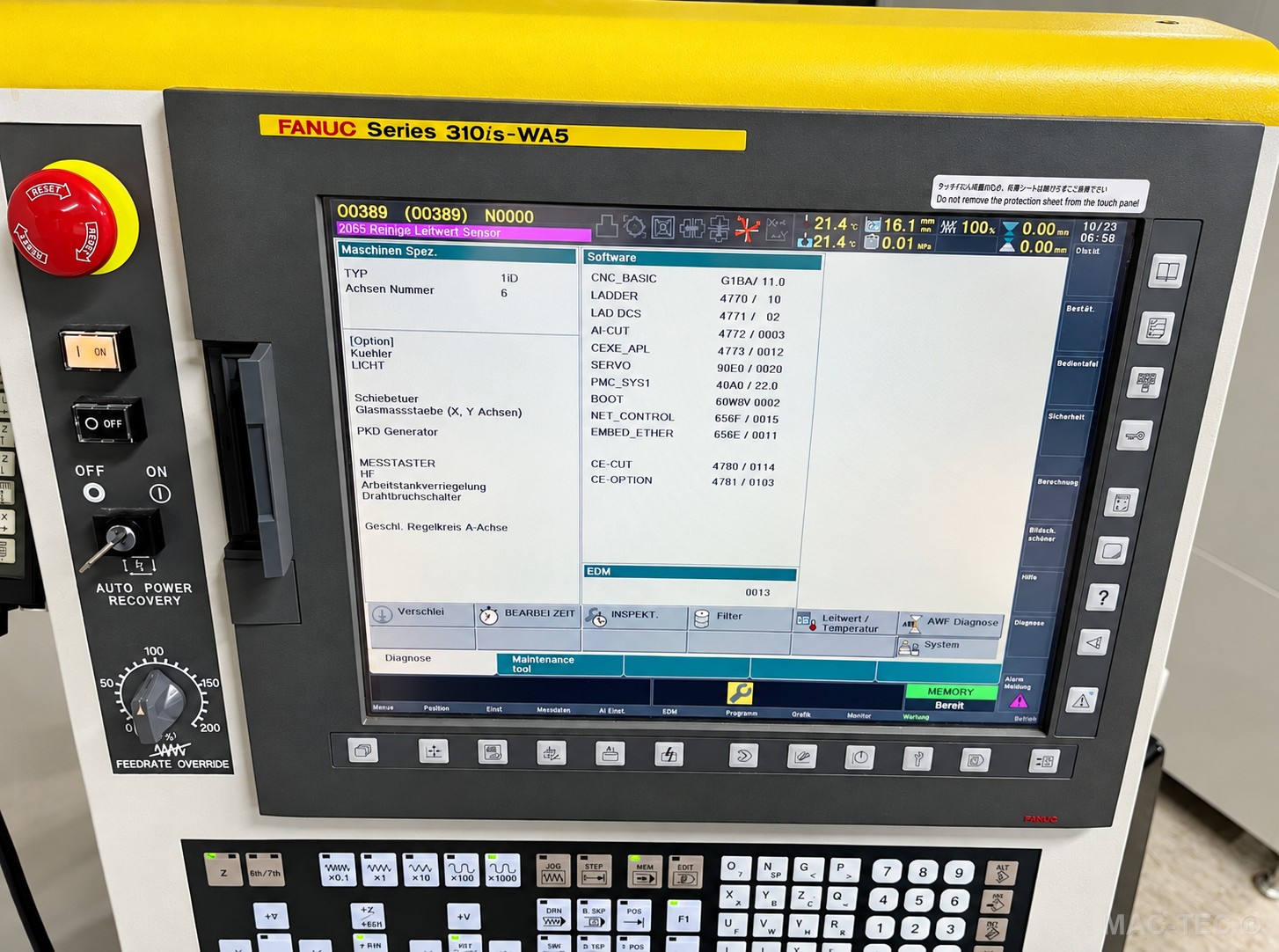

FANUC Series 310iS-WA5 control

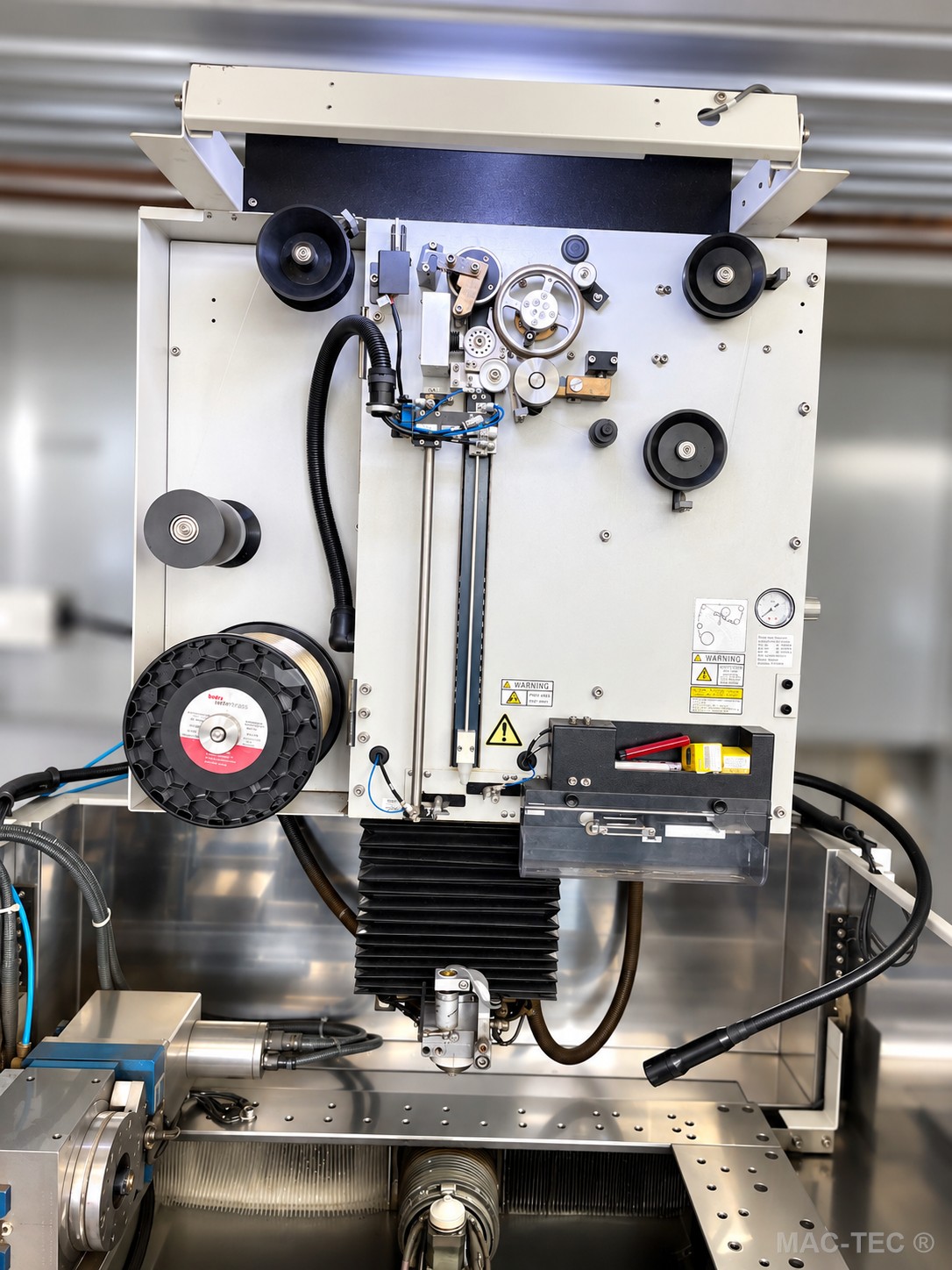

Automatic Wire Feeding (AWF)

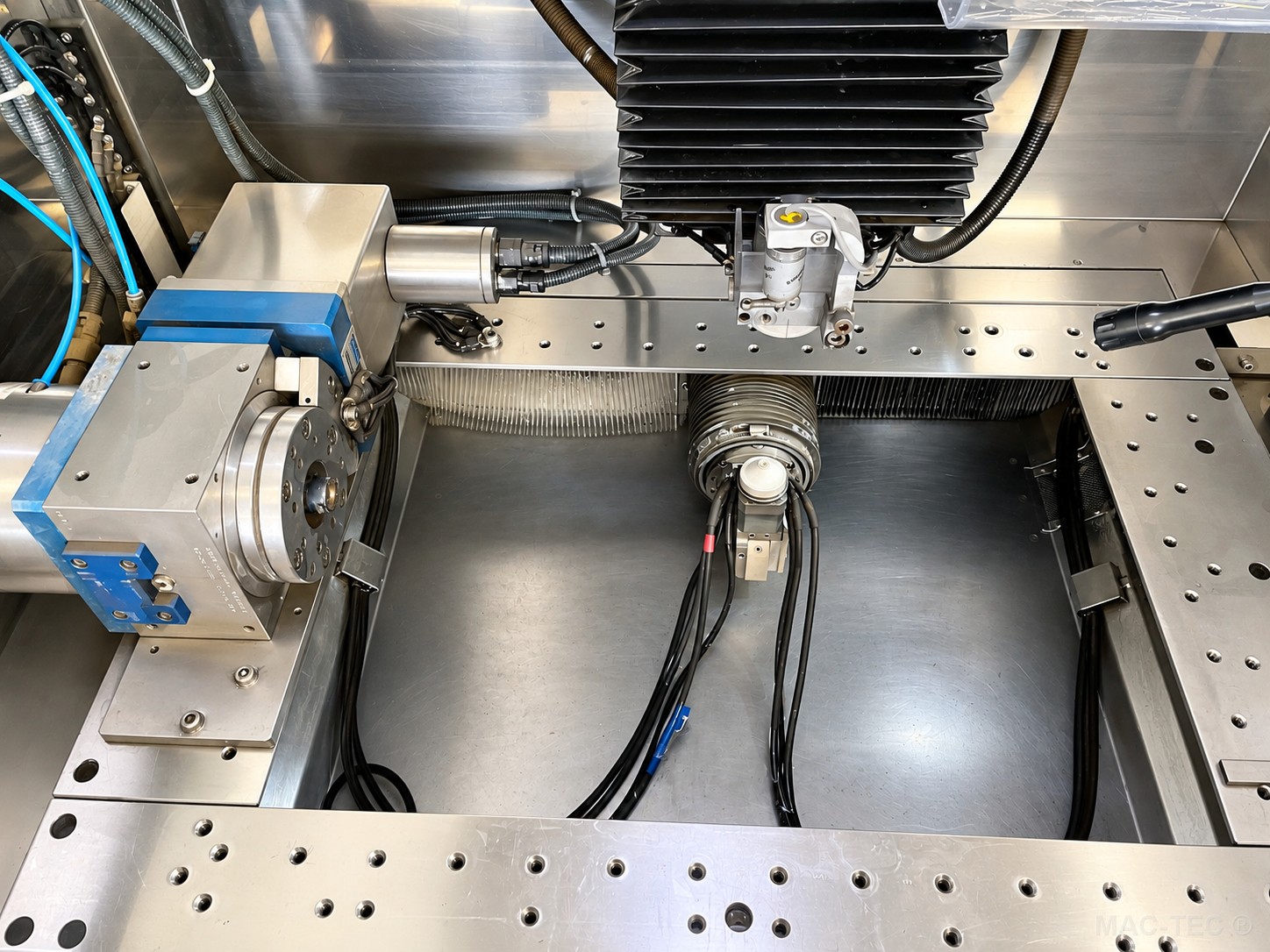

Additional precision rotary/indexing unit by Detlev Hofmann
6 axes according to the machine control

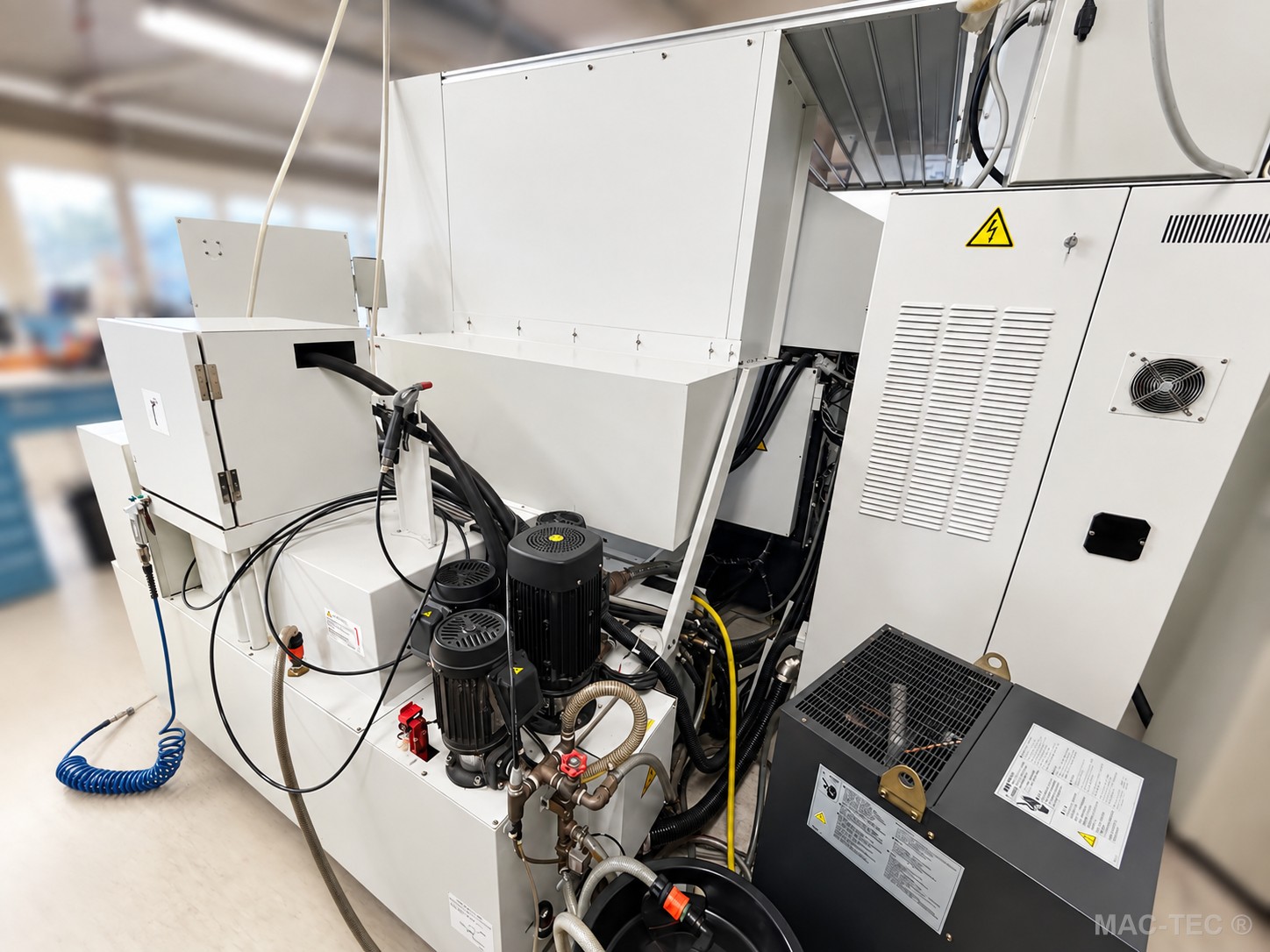

Chiller included
Work area lighting
Glass scales on X/Y axes
Touch probe
Work tank interlock and wire break detection
Machine weight: approx. 3,000 kg
Connected load: 13 kVA
