Typ: używana tokarka
Numer: 22692
Kategoria: Tokarki

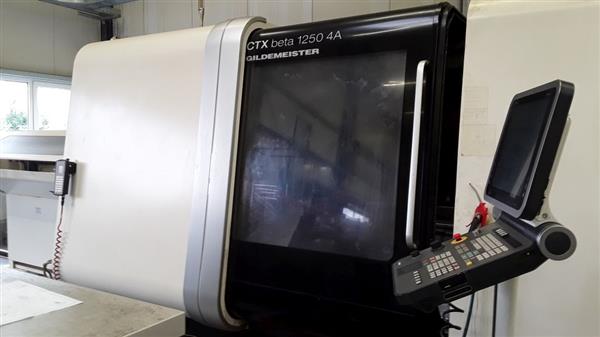

Producent: Gildemeister
Model: CTX beta 1250 4 A
Rok rodukcji: 2011
Osie: 270 x 120 x 1200 mm [ X x Y x Z ]
długość toczenia: 1135 mm
max. średnica obrotu: 700 mm
max. średnica toczenia: 340 mm
max. moment obrotowy: 680 NM
zakres obrotów od: 0 obroty/min
zakres obrotów do: 4000 obroty/min

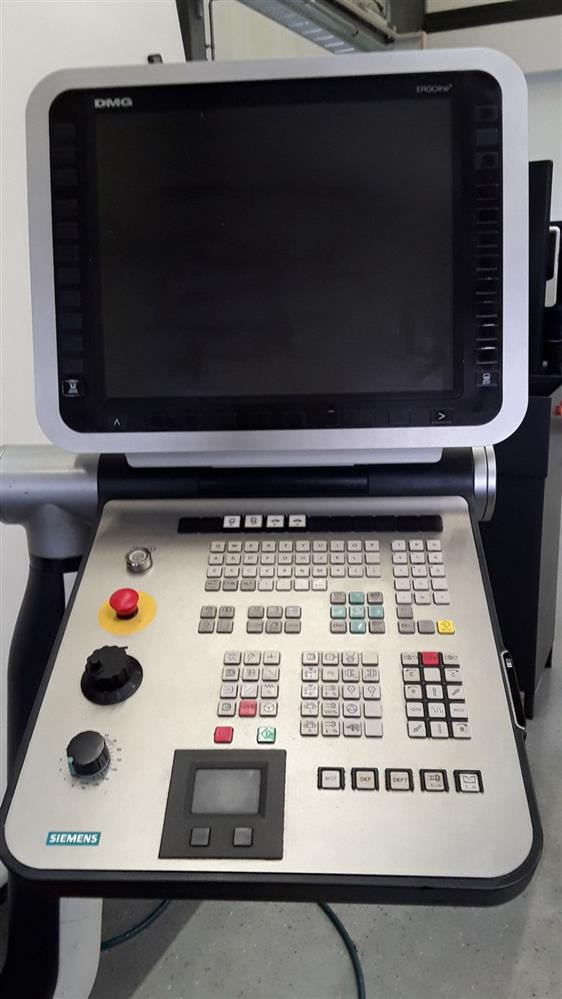

Sterowanie: DMG
napędzone wrzeciona
Napędzone narzędzia: 50
Scrapper chip conveyor
Short bar loader magazine IRCO ILS-RBK 100/16
Various main spindle reduction sleeves
NC-controlled workpiece removal device
Conveyor belt for transporting the workpieces out of the machine
Coolant system 8/20 bar with immersion cooler
Coolant spray gun
Chip conveyor
Oil mist extraction system
Control cabinet cooling unit (up to 40 °C)
4-color signal light, connection for bar loader magazine
Main spindle as integrated spindle motor ISM 102
Counter spindle as integrated spindle motor ISM 76
Easy-Tool Monitor
Approx. 40 various quick-change collets size 100 (entire stock)
Pneumatic changeover device Ø 100 mm
Approx. 50 various tool holders, static and driven (entire stock)
Installation elements
Documentation
