Typ: używana frezarka
Numer: 22725
Kategoria: Frezarki
Producent: Grob
Model: G 351
Rok rodukcji: 2016
Osie: 600 x 855 x 805 mm [ X x Y x Z ]
Number of axis: 5
Sterowanie: Heidenhain iTNC 530
uchwytem wrzeciona: HSK 63
Speed range from: 0 U/min
Speed range to: 16000 U/min
obroty wrzeciona: 16000 obroty/min
rozmiar stołu X: 320 mm
rozmiar stołu Y: 320 mm
max. waga detalu: 500 kg
wymiennik narzedzia: 130 - krotny
siła napędu: 32 kW
Torque: 206 Nm
Rapid traverse: 60 m/min
prędkość posuwu: 60000 mm/min
chłodzenie wrzeciona
odbiornik wiurów
control Heidenhain

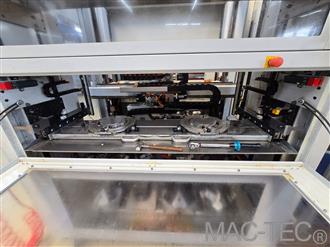

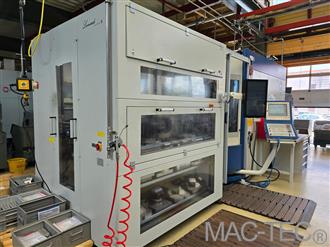

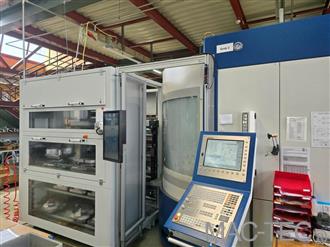

The Grob G351 is a high-performance 5-axis machining center, equipped with an EROWA Robot Multi Leonardo automation system handling up to 30 pallets (UPC 320×320).
Designed for maximum rigidity and precision, the machine delivers excellent accessibility and is ideal for complex milling applications in both single-part and series production.
It features an HSK63 spindle with up to 16,000 rpm, 32 kW power, and 206 Nm torque, ensuring strong cutting performance. The automation system enables highly flexible and low-manpower production.
The machine is equipped with 38 bar through-spindle coolant, Blum laser, 3D probe, work area extraction, spindle cooling, and a 130-tool magazine.
The G351 offers a rotary swivel table (4th/5th axis) and axis travels of X 600 mm / Y 855 mm / Z 805 mm.
