Typ: wire erosion machine
Number: 22728
Category: Wire erosion / EDM
Producer: Sodick
Model: SLC 400 G
Year: 2016
Travel axes: 400 x 300 x 250 mm [ X x Y x Z ]
max. workpiece size X: 850 mm
max. workpiece size Y: 610 mm
max. workpiece weight: 500 kg
with AWF ( Automatic Wire Feeding )
U / V axis: je 150 mm
submerged
cooling unit

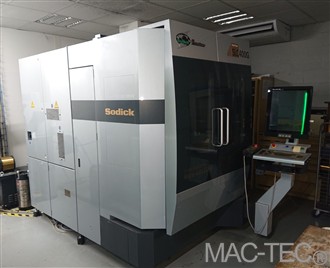

The SODICK SLC 400G is a high-precision wire EDM machine designed for demanding cutting operations.
It offers travel ranges of 400 x 300 x 250 mm, plus U and V axes for taper machining. The maximum workpiece size is 850 x 610 mm, with a maximum workpiece weight of 500 kg.

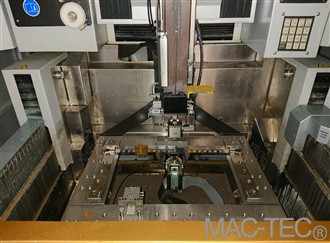

The machine operates in a submerged water tank and features an automatic wire threading system. Equipped with an SPW (Smart Pulse Wire) generator, it provides high cutting speed and excellent surface quality. It is suitable for complex shapes and precision parts.
